Why Intel Corporations 14-Nanometer Server Chips are So Expensive to Make

Microprocessor giant Intel (NASDAQ: INTC) recently reported that its data-center group -- DCG for short -- saw revenue increase by 10% year over year during the third quarter. However, its operating profit for this business unit -- that's revenue less cost of goods sold and operating expenses -- dropped a bit.

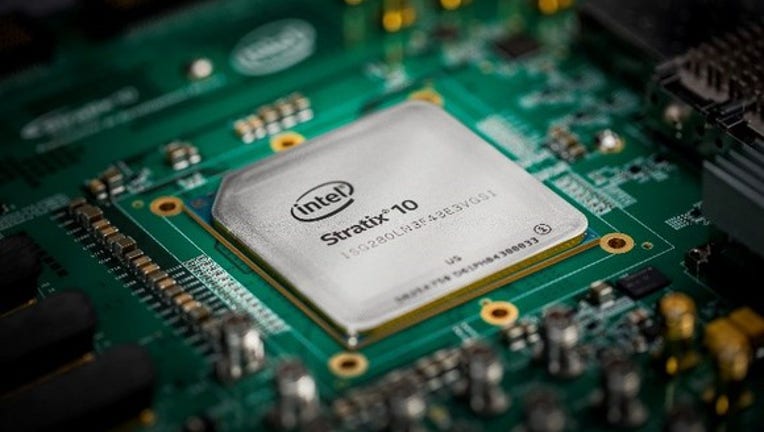

An enormous chip, known as an FPGA, manufactured in Intel's 14-nanometer tech. Source: Intel.

Intel's explanation for that drop ultimately boiled down to greater product manufacturing costs and increased investments in the business -- likely in the form of higher research and development spending.

There appears to be interest in a more in-depth explanation of those higher manufacturing costs. Here's my take.
